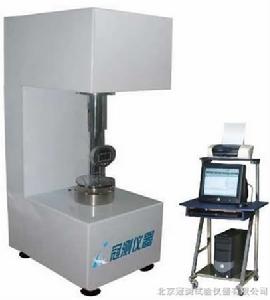

Plastic ball indentation hardness tester

Commodity description:

Manufacturing and inspection standards for products

1, JB/T7410 - 94 "plastic ball indentation hardness tester technical conditions"

2, JJG 369 - 1993 "plastic ball indentation hardness tester verification regulation"

Two. Standard Test methods applicable

1, GB3398.1-2008 "plastic hardness measurement in the first part: ball indentation method"

2, ISO2039-1:2001 "plastic hardness measurement in the first part: ball indentation method"

Three. Application scope

The instrument can be used to measure the hardness testing of materials in automobile engineering plastics and plastic building materials, and can be used for data processing and printing. This machine adopts hand touch screen technology, make the operation more simple, more intuitive, more beautiful picture. This product is our company patented products.

Four, the main technical indicators

1, the test load is divided into six levels: 49N (pre loaded) 9.8N, 132N, 358N, 612N, 961N

2, ball head: Phi 5mm, Phi 10mm

3, indentation depth indication minimum index value: 0.001mm

4, the maximum allowable height: 30mm

5, the pressure head to the wall distance: 55mm

6, indicating the value of accuracy: + 2%

7, timing range: 10~90s, timing accuracy of + 0.1s

8, effective measurement range: 0.150~0.350mm

9, the frame deformation: less than 0.05mm

10, the weight of equipment: 45kg

11, the size of the equipment (mm): 330 x 220 x 425
